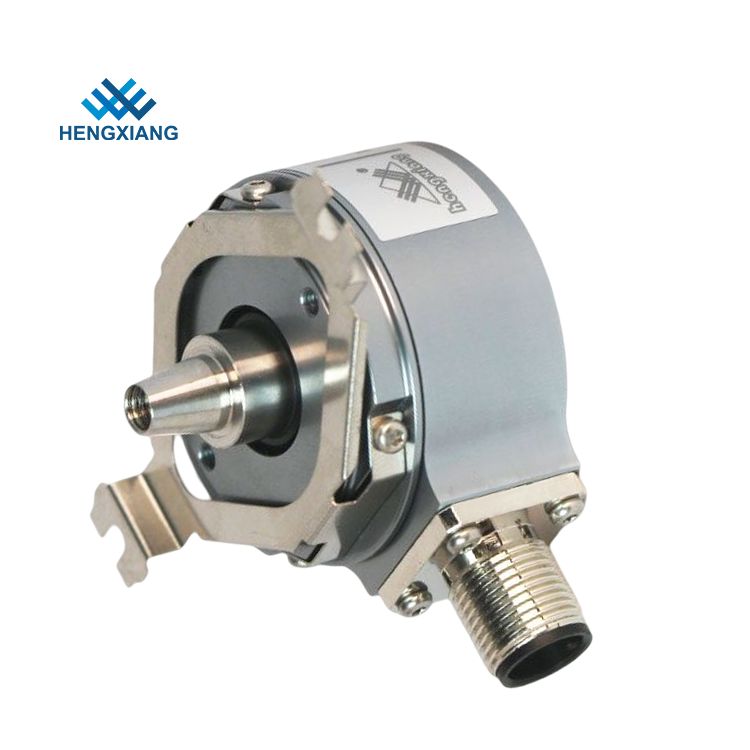

TS42 Sin/Cos Optical Encoder (Taper Shaft)

TS42 Sin/Cos Optical Encoder (Taper Shaft)

ts42 sin/cos optical encoder (taper shaft)

Feature:

  • Encoder external diameter 42mm、thickness 29.8mm, taper shaft 6.5mm, achieved robust miniaturization;
  • Installation adopts flexible spring plate and tapered shaft bolt locking structure;
  • Adopt non-contact photoelectric principle;
  • Resolution per turn Sin/Cos period 1024;
  • Two signal waveforms available (before and after generation);
  • Polarity reverse protection;
  • Short circuit protection.

Introduction:
TS42 is a taper shaft miniaturized design, can outout 1024 Sin/Cos cycle signals, the highest protection grade is lP65, compact structure, high safety, suitable for small space high resolution subdivision field.
