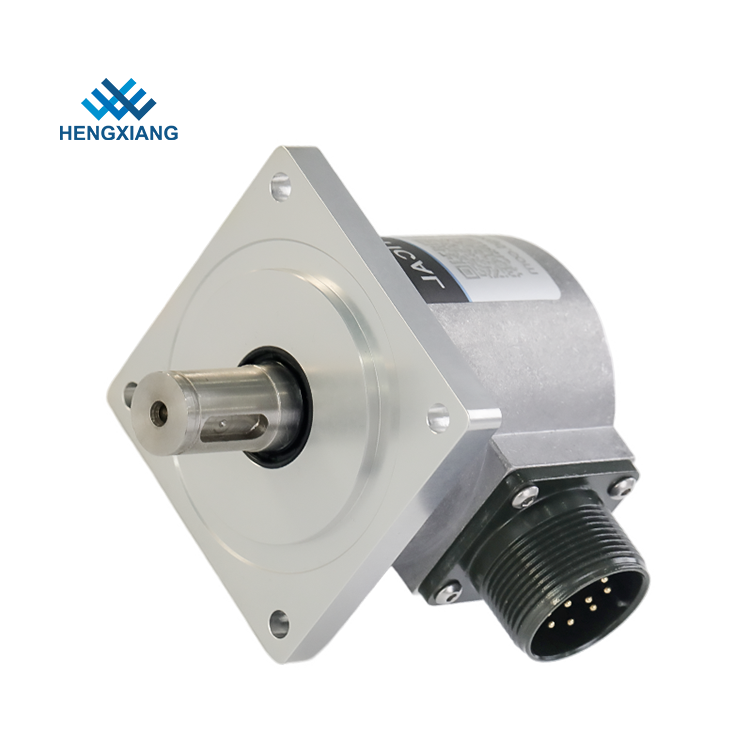

SC65F Incremental Optical Encoder (Solid shaft)

SC65F Incremental Optical Encoder (Solid shaft)

sc65f incremental optical encoder (solid shaft)

Feature:

  • Encoder external diameter 61mm;
  • thickness 58mm ;diameter of shaft 15mm(keyway 5mm);
  • Dimension of mounting flange 68mm*68mm;installation hole distance 56mm*56mm;
  • Adopt non-contact photoelectric principle;
  • Reverse polarity protection;
  • Short circuit protection;
  • Resolution up to 48000PPR.

Introduction:
SC65F is a solid shaft housing design, various of electrical interfaces and resolutions available, mounting by flange, highest protection grade lP65,compact product structure, high safety, suitable for high intensity mechanical movement fields.
