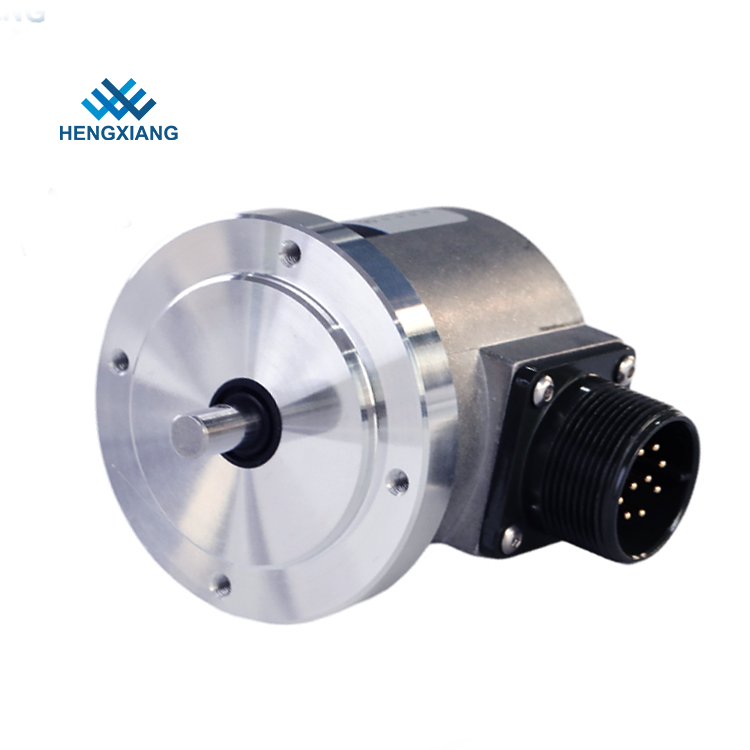

S70 Incremental Optical Encoder (Solid shaft)

S70 Incremental Optical Encoder (Solid shaft)

s70 incremental optical encoder (solid shaft)
  • Feature:
  • External dimensions: external diameter 70mm,
  • thickness 60mm,diameter of shaft 8mm(D type);
  • Adopt non-contact photoelectric principle;
  • Reverse polarity protection;
  • Short circuit protection;
  • Resolution up to 23040PPR.

Introduction:
S70 has a sturdy and durable flange installation, optional various output mode,etc.Suitable for high intensity mechanical movement fields.
