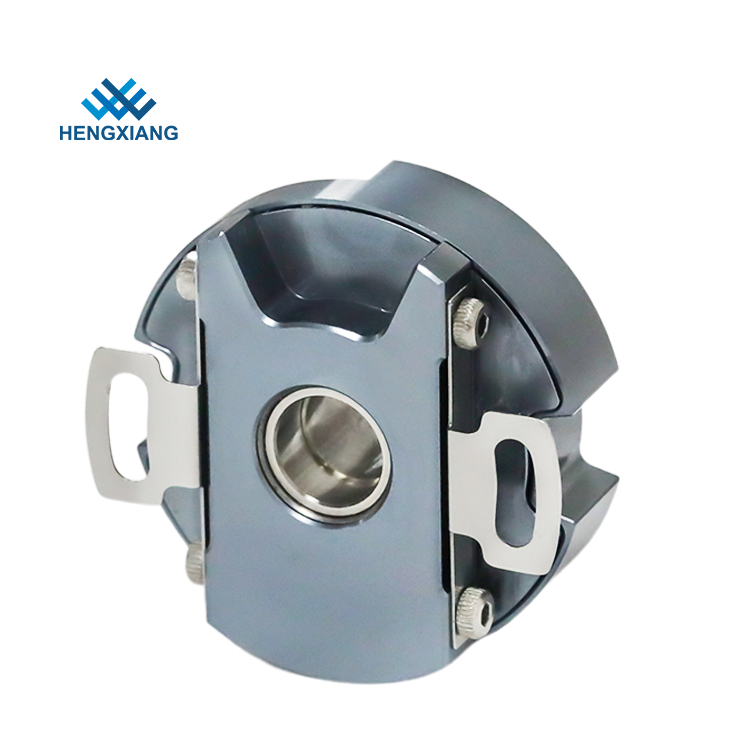

PN35 Incremental Optical Encoder (Hollow shaft)

Feature:

Encoder external diameter 35mm、thickness 15mm、diameter of shaft up to 8mm;
Adopt non-contact photoelectric principle;
Reverse polarity protection;
Short circuit protection;
Multiple electrical interfaces available;
Resolution per turn up to 5000PPR.

Introduction:
PN35 with its unique through-shaft concentric locking device,dual-bearing miniaturized ultra-thin design, flexible spring plate installation, multiple electrical interfaces, protection grade lP50 can solve the installation problems of low space limitations and slight axial movement of the motor shaft.
