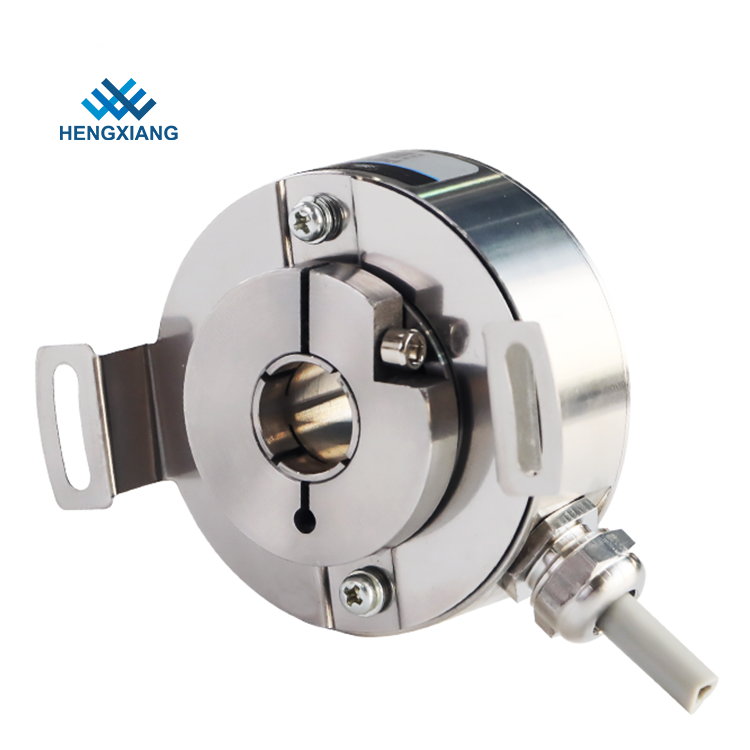

PGK50 Incremental Optical Encoder (Through shaft)

Feature:

Encoder external diameter 50mm、thickness 27mm、diameter of shaft up to 15mm;
The shaft is installed with encircling locking and fixedwith flexible spring plates;
Adopt non-contact photoelectric principle;
Reverse polarity protection;
Short circuit protection;
Multiple electrical interfaces available;
Resolution per turn up to 48000PPR

Introduction:
PGK50 is an ultra-thin through shaft, all stainless steel designwith a variety of electrical interfaces and resolutions available.The highest protection grade is lP67. lt has a compact structure.sturdy and high safety, commonly used in industrial automation fields under harsh environments.
