P48 Incremental Optical Encoder (Through shaft) / / Shanghai Hengxiang Optical Electronics Co., Ltd

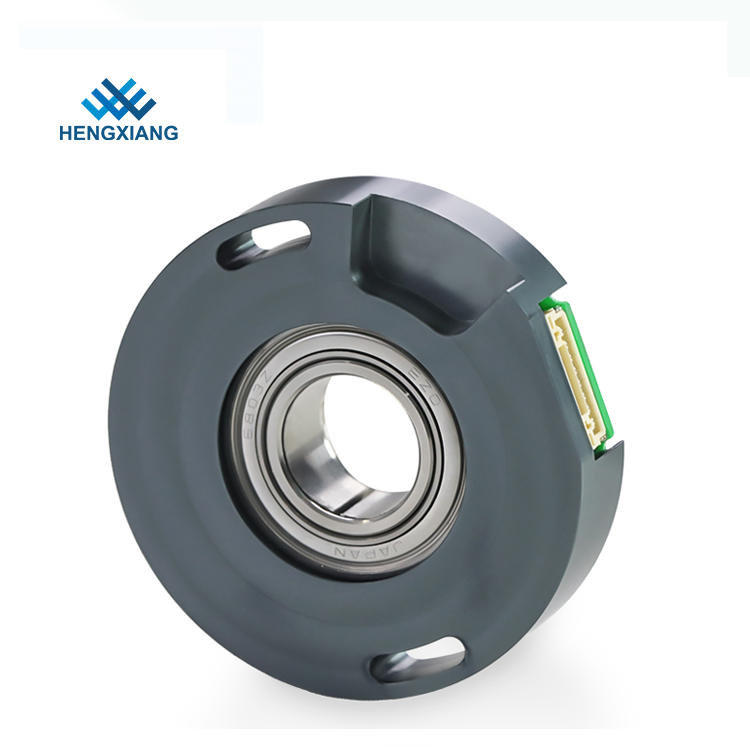

P48 Incremental Optical Encoder (Through shaft)

Feature:

Encoder external diameter 48mm、thickness min 11mm、diameter of shaft up to 14mm;
Adopt non-contact photoelectric principle;
Reverse polarity protection;
Short circuit protection;
Multiple electrical interfaces available; Resolution per tumn up to 5000PPR

Introduction:
P48 with its unique through-shaft concentric locking device,single-bearing ultra-thin design, mechanical hard connection,multiple electrical interfaces, and no dust protection, can solve the installation problem of low space restrictions.
