MPN80 Multi-turn Absolute Encoder (Through shaft) / / Shanghai Hengxiang Optical Electronics Co., Ltd

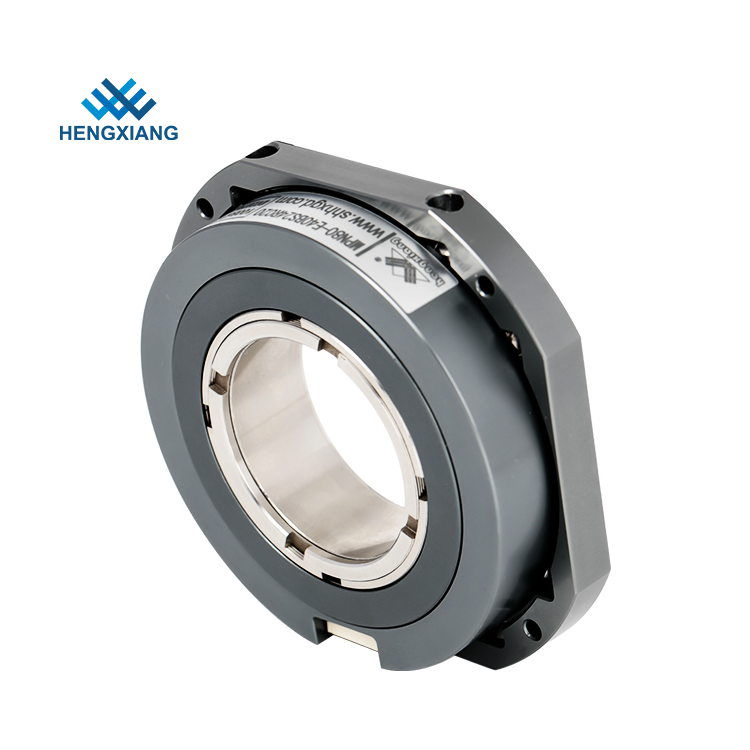

MPN80 Multi-turn Absolute Encoder (Through shaft)

Feature:

External diameter 080mm (Mounting flange diameter 94mm),Thickness 25mm, Hollow shaft up to 40mm;
Concentric shaft ring locking installation structure;
Adopt non-contact photoelectric reflective principle;
Interface: BiSS-C or SSl;
Accuracy:±80″;
Max resolution is 24Bits,can be expanded up to 32Bits; Support multi-turn data recording under the condition of no power lost.the maximum recording is 24 Bits.

Introduction:
MPN80 with its unique shaft concentric locking ultra-thin structure.The product has compact structure, high integration, simple installation,and is suitable for application scenarios with limited space.

Hengxiang’s encoder services are built around flexibility – with both OEM and ODM options available, we’re equipped to develop custom-made encoders that cater specifically to your requirements.
