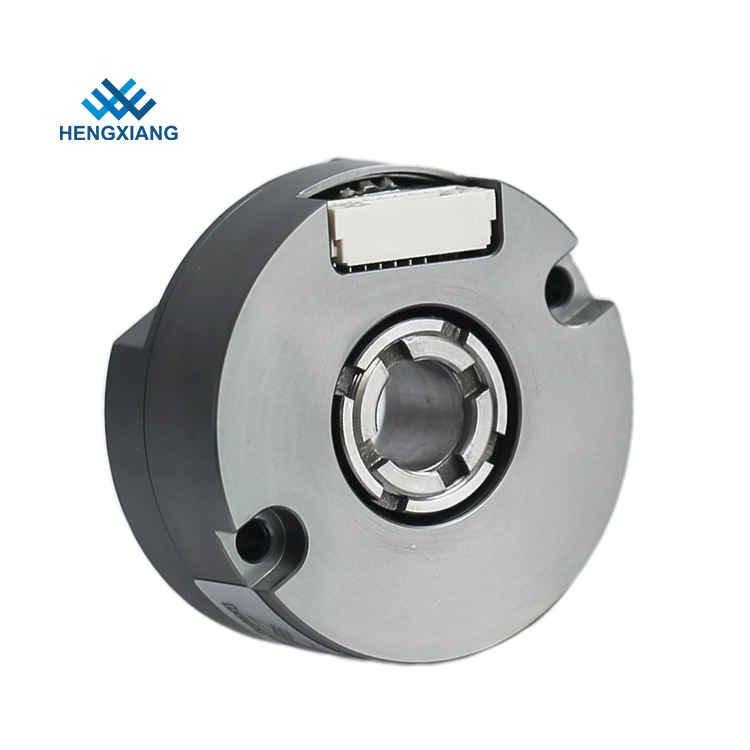

MP35 Single-turn Absolute Encoder (Through shaft)

Feature:

External diameter 35mm、thickness 15mm;
Diameter of shaft up to 8mm;
Concentric shaft ring locking installation structure; Adopt non-contact photoelectric reflective principle;
Interface:BiSS-C or SSl
Accuracy:±80″;
Resolution up to 24Bits;

Introduction:

MP35 with its unique shaft concentric locking ultra-thin structure.The product has a compact structure, high integration, sample installation, and is suitable for application scenarios in small space.

Hengxiang’s encoder services are built around flexibility – with both OEM and ODM options available, we’re equipped to develop custom-made encoders that cater specifically to your requirements.
