Feature:

• External diameter 58mm、thickness 30mm、diameter of shaft up to 25mm;
• Ring locking with shaft, flexible spring plate mounting;
• Adopt non-contact photoelectric reflection principle;
• Interface: BiSS Cor SSl;
• Accuracy: +80″;
• Single-turn resolution of 24Bits is expandable up to max 32Bits;
• Support multi-turn data recording without power failure,the maximum recording is 24Bits.

Introduction:

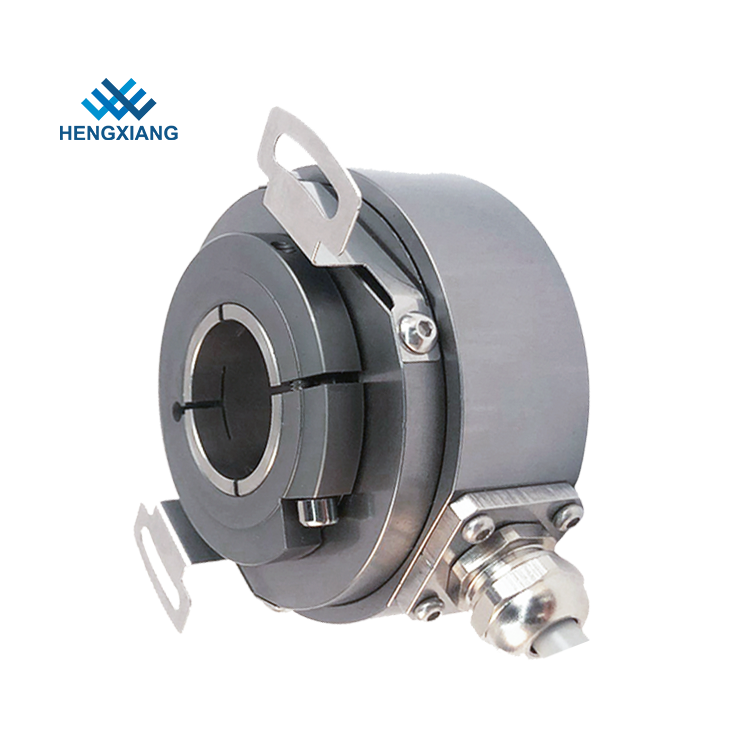

KM58 is a through shaft rugged design with lP65 protection high precision photoelectric absolute encoder, capable ofoutputting 24Bits of single-turn position information, expandable up to 32Bits, can read up to 24Bits of multi-turn position information. The structure is sturdy and durable.
